- GP-4301T (Rear Mount Model)
- PFXGP4301TADR
- PFXGP4301TADRF0C
- 5.7"
Documentation
Support
Quick Information
Design Tools
Software
Certifications
Functional Specifications
Display Type | TFT Color LCD
|
---|---|
Display Size | 5.7"
|
Resolution | 320 x 240 pixels (QVGA)
|
Effective Display Area | W115.2 x H86.4 mm [W4.54 x H3.40 in.]
|
Display Colors | 65,536 Colors (No blink)/16,384 Colors (Blink)
|
Backlight | White LED (User nonreplaceable parts. When replacement is required, contact your local distributor.)
|
Brightness Control | 16 Levels (Adjusted with the touch panel or the software)
|
Backlight Service Life | 50,000 hrs. or more (continuous operation at 25°C [77 °F] before backlight brightness decreases to 50%)
|
Language Fonts | Japanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters) ANK: 158 (Korean fonts, Simplified Chinese and Traditional Chinese fonts are downloadable.)
|
Character Sizes | Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts, Stroke font: 6 to 127 pixel fonts, Image font: 8 to 72 pixel fonts
|
Font Sizes | Standard font: Width can be expanded up to 8 times. Height can be expanded up to 8 times.*1
|
8 x 16 dots | 40 char. x 15 rows
|
16 x 16 dots | 20 char. x 15 rows
|
32 x 32 dots | 10 char. x 7 rows
|
8 x 8 dots | 40 char. x 30 rows
|
Program Area | FLASH EPROM 132 KB (Equivalent to 15,000 steps)*2
|
Variable Area | SRAM 64 KB (Replaceable Lithium battery for backup memory)
|
Application Memory | FLASH EPROM 16 MB (including a logic program area)
|
Data Backup | SRAM 320 KB (Replaceable Lithium battery for backup memory)
|
Clock Accuracy | ±65 sec/month (deviation at room temperature and power is OFF)*3
|
Touch Panel Type | Resistive Film (analog)
|
Touch Panel Resolution | 1,024 x 1,024
|
Touch Panel Service Life | 1,000,000 times or more
|
Serial (COM1) | RS-232C Asynchronous Transmission Data Length: 7 or 8 bits, Parity: none, Odd or Even, Stop Bit: 1 or 2 bits, Data Transmission Speed: 2,400 bps to 115.2 kbps, Connector: D-Sub9 (plug)
|
Serial (COM2) | RS-422/485 Asynchronous Transmission Data Length: 7 or 8 bits, Parity: none, Even or Odd Stop Bit: 1 or 2 bits, Data Transmission Speed: 2,400 bps to 115.2 kbps, 187.5kbps (MPI) Connector: D-Sub9 (plug)
|
Ethernet (LAN) | IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX Connector: Modular jack (RJ-45) x 1
|
USB (TYPE-A) | Conforms to USB2.0 (TYPE-A) x 1, Power Supply Voltage: DC 5 V ±5 %, Output Current: 500 mA or less, Communication Distance: 5 m [16.4ft.] or less
|
USB (mini-B) | Conforms to USB2.0 (mini-B) x 1, Communication Distance: 5 m [16.4ft.] or less
|
SD Card | SD Card Slot x 1
|
1Other font sizes can be set up with the Editor software.
2Up to 60,000 steps can be converted in software. However, this reduces application memory capacity (for screen data) by 1 MB.
3Depending on the operating temperature and age of unit, the clock can deviate from -380 to +90 sec/month. For systems where this level of deviation is a problem, the user should monitor and make adjustments when required.
General Specifications
International Safety Standards | |
---|---|
Rated Input Voltage | DC 24V
|
Input Voltage Limits | DC 19.2 to 28.8V
|
Allowable Voltage Drop | 5 ms or less
|
Power Consumption | 10.5 W or less
|
In-Rush Current | 30 A or less
|
Surrounding Air Temperature | 0 to 55 °C (32 to 131 °F)
|
Storage Temperature | -20 to 60 °C (-4 to 140 °F)
|
Ambient Humidity | 10 to 90 % RH (Wet bulb temperature: 39 °C [102.2 °F] or less - no condensation.)
|
Storage Humidity | 10 to 90 % RH (Wet bulb temperature: 39 °C [102.2 °F] or less - no condensation.)
|
Dust | 0.1 mg/m³ (10⁻⁷ oz/ft³) or less (non-conductive levels)
|
Pollution Degree | For use in Pollution Degree 2 environment
|
Atmosphere | Free of corrosive gases
|
Air Pressure (altitude range) | 800 to 1,114 hPa (2,000 m [6,561ft.] above sea level or less)
|
Vibration Resistance | IEC/EN61131-2 compliant, 5 to 9 Hz Single amplitude 3.5 mm [0.14 in.], 9 to 150 Hz Fixed acceleration: 9.8 m/s², X, Y, Z directions for 10 cycles (approx. 100 min)
|
Concussion Resistance | IEC/EN61131-2 compliant 147 m/s², X, Y, Z directions for 3 times
|
Noise Immunity | Noise Voltage: 1,000 Vp-p, Pulse Duration: 1 µs, Rise Time: 1 ns (via noise simulator)
|
Electrostatic Discharge Immunity | Contact Discharge Method: 6 kV (IEC/EN61000-4-2 Level 3)
|
Grounding | Functional grounding: Grounding resistance of 100Ω, 2mm² (AWG 14) or thicker wire, or your country's applicable standard. (Same for FG and SG terminals)
|
Structure | IP20*4
|
Cooling Method | Natural air circulation
|
Weight Approx. | 1 kg [2.2 lb] or less (including the installation fasteners)
|
External Dimensions | W155.6 x H123.4 x D59.7 mm [W6.13 x H4.86 x D2.35 in.]
|
Panel Cut Dimensions | Standard Mount: W118.8 x H90 mm [W4.68 x H3.54 in.]
Flat Mount: W143 x H109 mm [W5.63 x H4.29 in.] *5 |
4Protection structure equivalent to IP65F can be expected if you affix the Overlay (sold separately) on the screen of the GP unit and the surroundings. Pro-face does not guarantee the protective structure. Consider the the protective structure in combination with a panel or a resin plate within your quality assurance range. For details, please refer to GP4000 Series Hardware Manual.
5As for dimensional tolerance everything +0.5/-0 mm (+0.02/-0 in.) and R in angle are below R1 (R0.04in.).

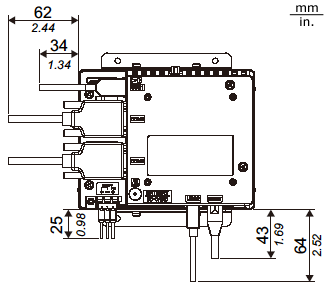

External Dimensions

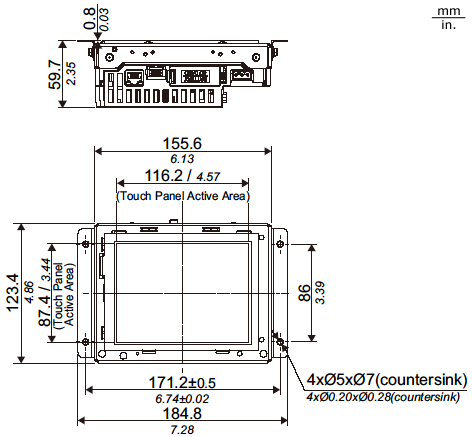

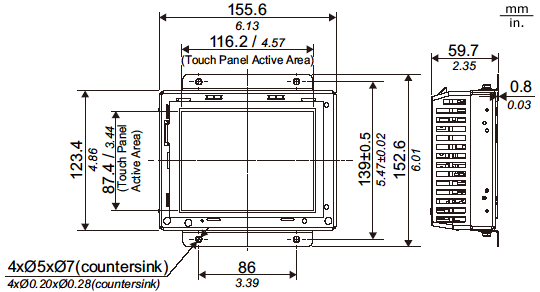

Panel Type/Standard Mount

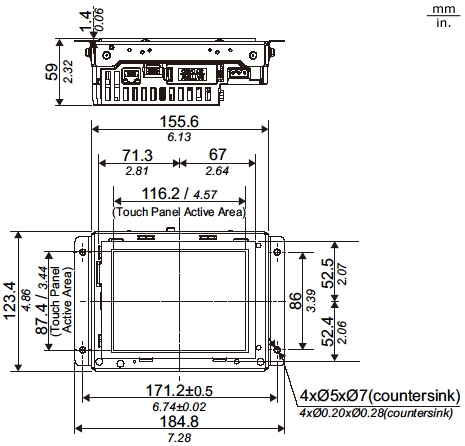

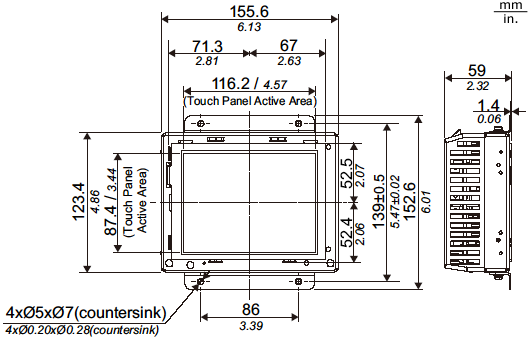

Panel Type/Flat Mount

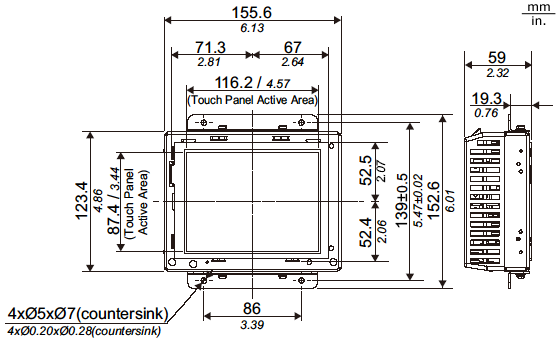

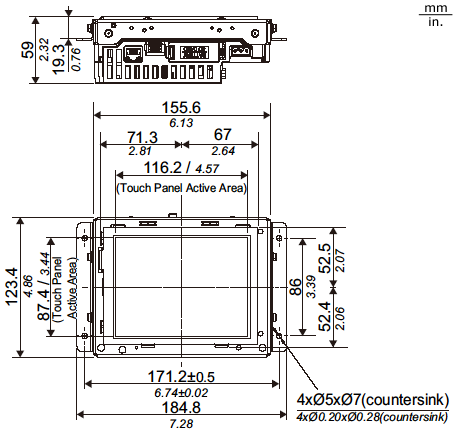

Resin Boss Type/Standard Mount, Flat Mount
Panel Cut-out (Panel Type/Resin Boss Type)
Standard Mount (Panel Type/Resin Boss Type)
a) | Installation positions of stud bolts or positions of boss molds when attaching installation brackets at the top and bottom surfaces of the GP unit | |
b) | Installation positions of stud bolts or positions of boss molds when attaching installation brackets on either side of the GP unit | |
d) | 4-M4 x 10L stud bolts (no foreign material present on the base due to sparking or similar phenomena) or boss molds | |
e) | Center of the display area |
A | B | C | R | |
---|---|---|---|---|
Panel Type *1 | Resin Boss Type *2 | |||
118.8mm (+0.5, -0mm) (4.68in. [+0.02, -0in.]) | 90mm (+0.5, -0mm) (3.54in. [+0.02, -0in.]) | 1.6mm (0.06in.) to 3.2mm (0.13in.) (SPCC "JIS G3141" or SECC "JIS G3313") 1.5mm (0.06in.) to 6mm (0.24in.) (SUS304 "JIS G4304, JIS G4305") |
2mm (0.08in.) or more | 1mm (0.04in.) maximum |
*1 Panel type: Weld the stud bolts to the panel, and then tighten the nuts to fasten the GP unit to the panel.
*2 Resin boss type: Tighten the screws to attach the GP unit to the bosses of the resin boss-molded product.
Attaching Installation Brackets on the Top and Bottom Surfaces of the GP Unit |
Attaching Installation Brackets on the Sides of the GP Unit |
||
---|---|---|---|
X1 | Y1 | X2 | Y2 |
43 (±0.15) [1.69, (±0.01)] |
69.5 (±0.15) [2.74, (±0.01)] |
85.6 (±0.15) [3.37, (±0.01)] |
43 (±0.15) [1.69, (±0.01)] |
Flat Mount (Panel Type/Resin Boss Type)
a) | Installation positions of stud bolts or positions of boss molds when attaching installation brackets at the top and bottom surfaces of the GP unit | |
b) | Installation positions of stud bolts or positions of boss molds when attaching installation brackets on either side of the GP unit | |
d) | 4-M4 x 10L stud bolts (no foreign material present on the base due to sparking or similar phenomena) or boss molds | |
e) | Center of the display area |
A | B | C | R | ||
---|---|---|---|---|---|
A1 | A2 | Panel Type *1 | Resin Boss Type *2 | ||
143mm (+0.5, -0mm) (5.63in.[+0.02, -0in.]) |
109mm (+0.5, -0mm) (4.29in. [+0.02, -0in.]) |
1.6 mm (0.06in.) (SPCC "JIS G3141" or SECC "JIS G3313") 1.5 mm (0.06in.) (SUS304 "JIS G4304, JIS G4305") |
2 mm (0.08in.) maximum | 1 mm (0.04in.) maximum | |
70.5mm (+0.25, -0mm) (2.78in. [+0.01, -0in.]) |
72.5mm (+0.25, -0mm) (2.85in. [+0.01, -0in.]) |
*1 Panel type: Weld the stud bolts to the panel, and then tighten the nuts to fasten the GP unit to the panel.
*2 Resin boss type: Tighten the screws to attach the GP unit to the bosses of the resin boss-molded product.
Attaching Installation Brackets on the Top and Bottom Surfaces of the GP Unit |
Attaching Installation Brackets on the Sides of the GP Unit |
||
---|---|---|---|
X1 | Y1 | X2 | Y2 |
43 (±0.15) [1.69, (±0.01)] |
69.5 (±0.15) [2.74, (±0.01)] |
85.6 (±0.15) [3.37, (±0.01)] |
43 (±0.15) [1.69, (±0.01)] |
